Team Plus External Track Grade TPMS – Tyre Pressure Monitors

Team Plus Pty Ltd (Team Plus) is an Australian small business engaged in the production, sale and support of Automotive Telemetry focused Race and Track Products.

The Team Plus Telemetry solutions business grew from the support provided to motorsports teams across Australia, and offer products (applications and hardware) that help support motorsport and vehicle enthusiasts get access to information and technology only available to high end motorsport teams in the past at a price that is affordable.

Team Plus is a small family business located in Australia manufacturing and selling exclusive Australian Designed and built products and utilising customised software.

The Team Plus® Track Day Grade TPMS is a purpose built for racing set of 4 tyre pressure modules to mount on each tyre valve measuring:

• Tyre Pressure within 0.1psi
• Valve Temperature
• at around 10 updates per second. (10hz)

AUTO FIND capability allows you to change sensors to any tyre anytime or change to a new tyre and the sensor will be automatically assigned to the correct wheel.   AUTO FIND is a feature available when Team Plus® TPMS is used with Team Plus® Wheel Turtle® PRO sensors.

Description

The Team Plus® Track Day Grade TPMS is a purpose built for racing set of 4 tyre pressure modules to mount on each tyre valve measuring:

• Tyre Pressure
• Valve Temperature

AUTO FIND capability allows you to change sensors to any tyre anytime or change to a new tyre and the sensor will be automatically assigned to the correct wheel.   AUTO FIND is a feature available when Team Plus® TPMS is used with Team Plus® Wheel Turtle® PRO sensors.

The TPMS stream LIVE to the Team Plus® CANGate® allowing you to:

• • view Pressure of all 4 wheels live on the CANGate® display or phone / tablet
  • add the pressure data to the CANBus configuration when sending format is set to:
    • Team Plus Standard CAN format. (dbc files available)
    • Haltech formats

Team Plus TPMS is available in 2 grades:

• Street Grade – Similar to existing bluetooth TPMS models available, with updates in pressure limited to every 2-3 seconds and pressure accuracy within 1psi, but with very long battery life.   Suitable for general tyre information and loss of pressure information supplementing the Wheel Turtle Tyre Temperatures.
• Track Day Grade –  A model exclusive to Team Plus® and built to our specifications, these external TPMS sensors are built to have a significantly higher pressure update rate of around 10Hz (10 times each second) as well as better accuracy of pressure measurement (~ 0.1psi).  This will provide real time data on pressure to go with the Wheel Turtle® Temperatures.  These are ideal for the track day and test day scenario adding value to the can bus data.

The Track Day Grade TPMS model features:

• • • Convenient external valve screw on sensors
    • Any sensor can be used on any wheel, configured by the TELDASH app.
    • Auto Find capability when combined with Wheel Turtle PRO sensors.
    • Internal easily changed button style battery with around 18 hours of active transmit time and months on standby
    • TPMS pressures can be read and displayed by CANGate and sent onto the CANBUS

Product Specification:

• • • Bluetooth Version: 4.2
    • Working Voltage: 2.6- 3V
    • Bluetooth Operating Frequency: 2.4GHz
    • Sample Rate: 10Hz
    • Update Rate: 8-10Hz
    • Waterproof Rating:  IP67
    • Working Humidity:  <95%
    • Tire Pressure Detection Range:   10-1300kPa
    • Tire Pressure Detection Accuracy:   0.1psi
    • Working Temperature:  -30~+90C
    • Battery Capacity:   140mAh
    • Battery Life:  18Hrs Driving time.  Sleeps when wheel not active.

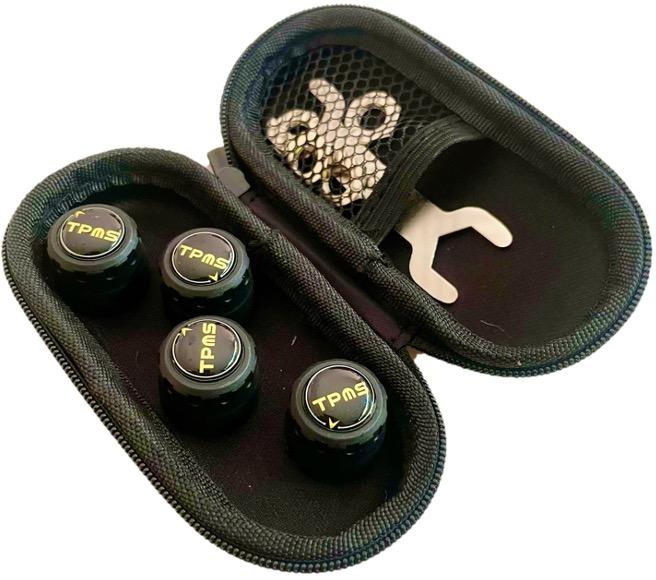

In the Box:

• • • 4 Tyre Pressure Sensors (external)
    • 1 Carry Case
    • Battery supplied and fitted to each sensor
