The Racing & High Performance Division of CSF Inc. strives to build and engineer the most advanced, efficient, and reliable cooling systems in the world. CSF manufacturers a wide variety of sophisticated cooling systems with more than 250 different applications, ranging fromhigh performance all-aluminum direct-fit radiators, intercoolers, and oil coolers, to completecustom manufacturingfor racecars, power sports, off-road, marine, and industrial use. All CSF cooling systems are designed and engineered to maintain optimal engine temperatures, even under the most extreme driving conditions.
With over 50 years of experience and over 40 million cooling systems sold globally, CSF has earned the industry reputation of being “THE COOLING EXPERTS”.
Over 50 Years in Business
ISO 9001 Certified – True Manufacturer
Over 150,000 Radiators and Condensers in Stock over North America
Over 650,000 Units Sold Annually, with Manufacturing and Warehousing Capacity for 1 Million Units
CSF prides itself on using the most advanced technologies, machines, and experienced personnel to design, develop, and manufacture the world’s best cooling systems. With three privately owned manufacturing facilities, and a global cooling network formed over the past 75 years, CSF houses the industry’s best machines and brightest minds. Our engineering staff designs many of the machines in-house, giving CSF the innovative edge when introducing new technologies to the industry.
PRODUCT INFORMATION
THE BEST BMW N54/N55 INTERCOOLER ON THE MARKET
“It’s about damn time!” That’s what the industry shouted back when they found out that CSF would be releasing the world’s best BMW E-Series N54/N55 intercooler. Late to the party considering the platform is now over ten years old, but after the overwhelming success of the CSF’s newer BMW F-Series N55 intercooler, CSF had to answer the call and supply an industry-leading design to address all the shortcomings of not just the OEM unit, but also other aftermarket intercoolers.
The BMW N54 engine has become known as one of the best built, most reliable engines in the world, especially from a high performance tuning standpoint. Many owners are now pushing well over 500hp out of these motors, some getting in the 700’s on big single turbo set ups, and a few now inching near or over the 1000hp mark! Truly amazing performance can be achieved when using the proper components from quality high performance companies, including needing a worthy high performance intercooler to handle the increased Intake Air Temperatures (IAT’s) generated from more power and higher boost pressures associated with these built vehicles.
Direct replacement for BMW part number 17517540035.
FEATURES
The only TRUE Plug-and-Play solution compared to the rest.
No cheaper silicone hose clamp System, BMW style “Quick-Connect” machined fittings.

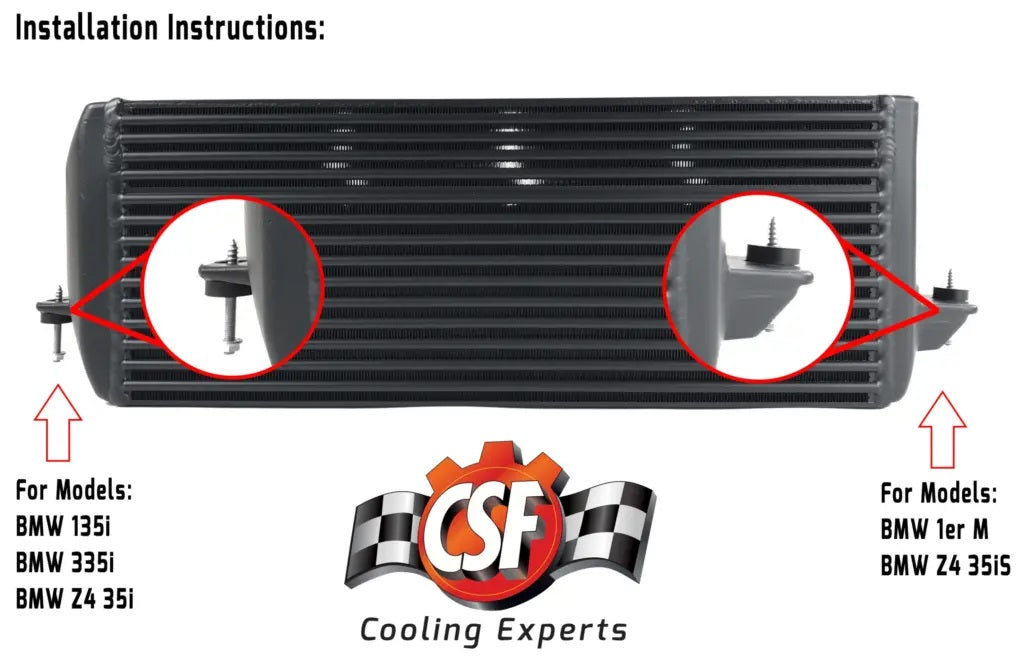

OEM mounting locations with fitment kit and instructions included.
Clears OEM crash bar, no modification to install with no cutting or trimming required.
Bottom (larger) section: 5.5” thick (140mm).
Massive front face: ~8.25” Tall (210mm).
Good for Over 1000 HP!
SPRAY PAINT STENCIL PROVIDED FOR PERSONAL CUSTOMIZATIONS.

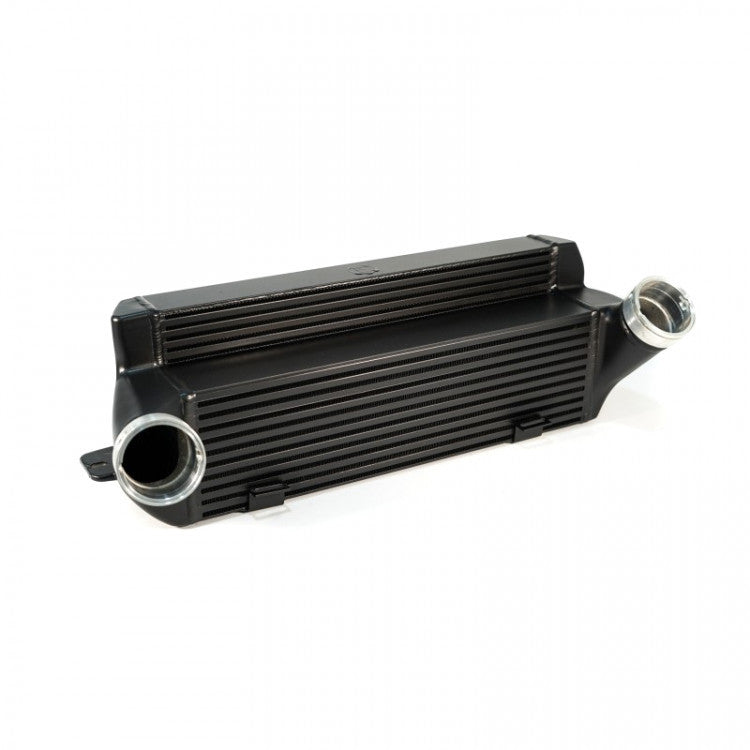

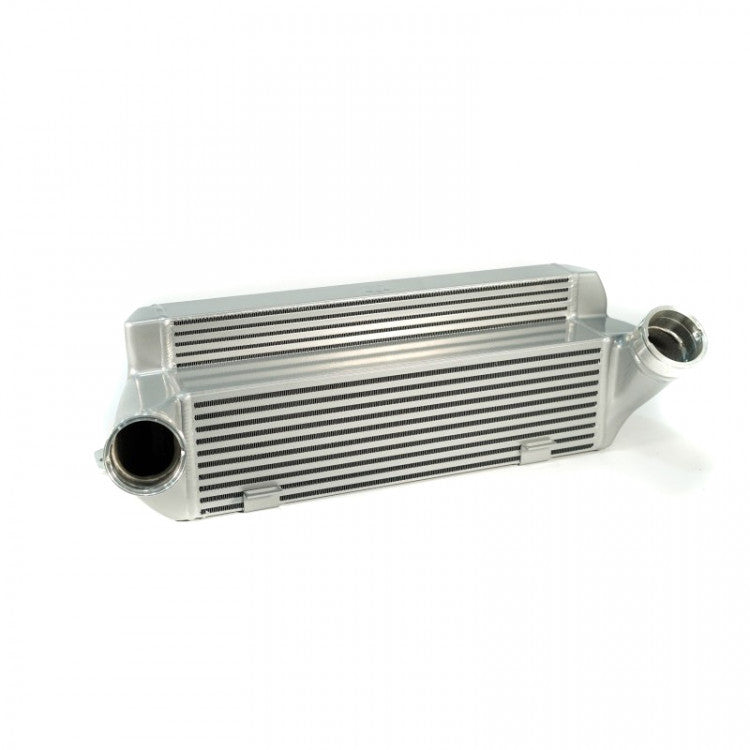

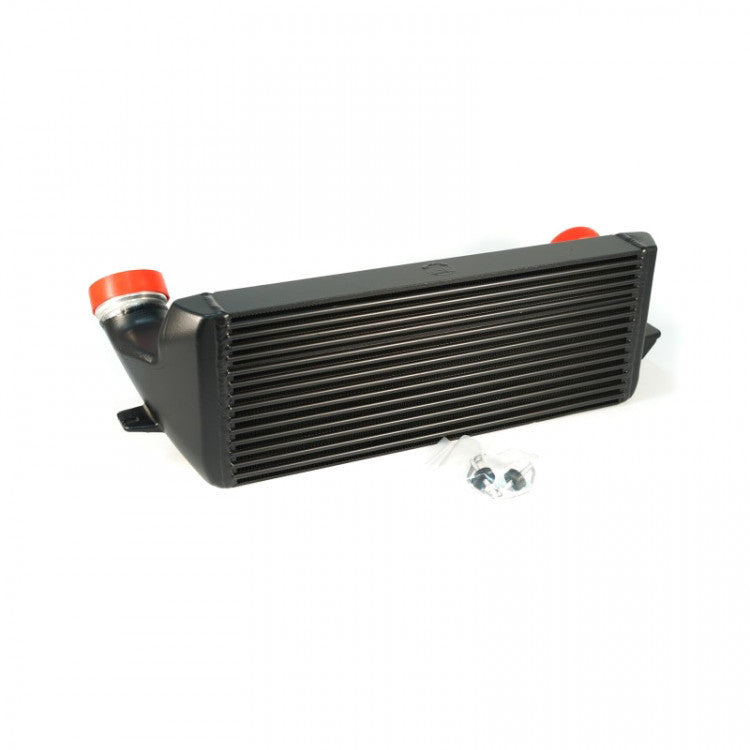

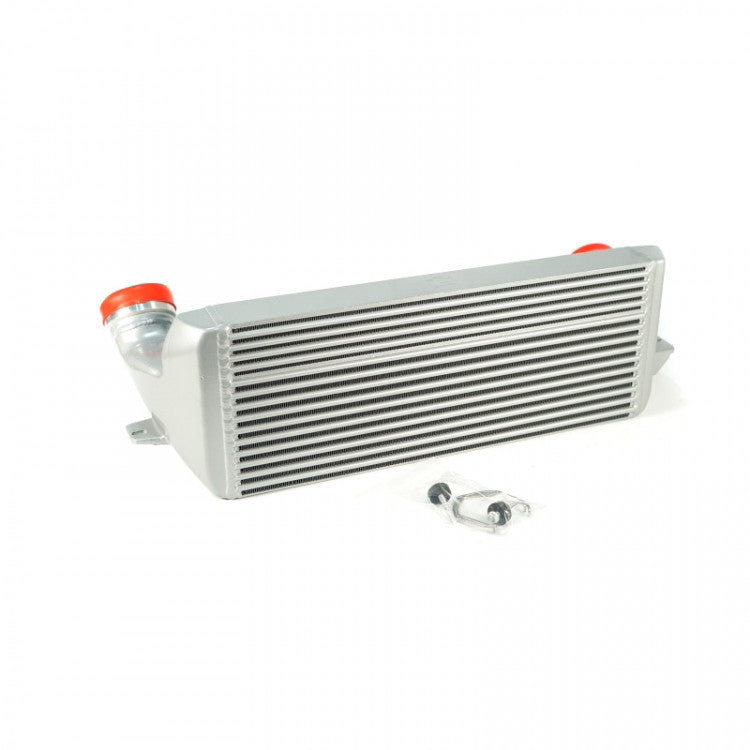

Available in Brilliant Silver (#CSF8127) and Semi-Gloss Black (#CSF8127B).
CSF VS OEM
IS IT TIME TO REPLACE YOUR OEM INTERCOOLER?
The weak plastic endcaps can become weak & brittle over time with repeated heat cycle use and normal wear. Keep in mind the model range of 2004-2013 so the original OEM intercooler can be anywhere from 5 to almost 15 years old at the time of writing this article.
The OEM style tube/fin core has many performance limitations (keep reading below), and may also become full of debris from typical road use effecting performance of an already limited intercooler. Also, being mounted in the front fascia of the vehicle, small rock chips or debris may cause small punctures in the tubes of the core, causing small boost leaks which users may not realize, further reducing intercooler performance.
The direct injection system of the N54 engine causes massive amounts of oil build up in the charge piping, intercooler, and intake manifold. This further reduces the performance of the intercooler.
Before purchasing another OEM replacement intercooler for ~$530USD, potential buyers should realize that there is a much better alternative (at an even better price point!) with CSF’s new BMW N54/N55 intercooler.
INTERCOOLER DESIGN
The OEM intercooler is made from plastic end tanks that are crimped on to an aluminum tube/fin core that is ~4 inches thick (105mm core width) and is 5 inches in height (127mm). This may be enough to keep IAT’s in check on a completely unmodified / stock vehicle, but once users to start increase power through bolt-on modifications, tuning, and built engines, the OEM intercooler will become the achilles heel of the system with IAT’s skyrocketing out of the optimal range and drastically lowering the performance capabilities of the vehicle.
Enter CSF with their new, stepped core design, bar/plate high performance BMW n54 intercooler. This “drop-in fit” intercooler, which requires no modifications to install, has a bottom / larger section that is 5.5 inches thick (140mm) with a front face that is massive ~8.25 inches tall (210mm). A huge improvement over the OEM unit, and enough to handle even the most advanced n54 engine builds. Good for 1000hp, no problem!
CORE
The OEM, and some higher-price aftermarket units, are made out of a tube/fin style core. While lightweight, this type of core is prone to heat soaking under high boost levels and prolonged use. Also, the core is susceptible to bursting (or bulging) due to increased boost levels as tube/fin cores can not take the higher boost pressures of a high performance system.
CSF’s new BMW N54 intercooler is made from it’s industry exclusive rounded bar/plate core design. The rounded front face of the cooling bars allows for better airflow into the core. Airflow hits the core surface, and rather than scattering like it does with hitting the face of a flat bar that all competing products have, it travels around the face of the round bar and into core for much better performance than both the OEM design (flat face) and all other aftermarket competitors (all have flat face tubes or bars).
CSF has also wind-tunnel tested (in-house) and optimized the size of the core and fin density of the intercooler core to ensure low pressure drop and proper airflow into the rest of the system, including the radiator which is known to be another shortcoming of the cooling system.
ENDTANKS
Compared to the OEM style plastic crimped on end tanks, the CSF unit is vastly improved. The all-aluminum cast end tanks are 100% TIG welded to the high performance core for better durability, reliability, and longevity. The CSF intercooler comes with a lifetime guarantee against manufacturing defects or failure due to normal / intended use.
Just like the OEM design, the CSF intercooler integrates the factory style “Quick-Connect” inlet/outlet fittings. CSF has CNC machined and welded these fittings to the core for perfect factory-level fitment. (new high performance locking spring clip included)
CSF VS THE COMPETITION
PRICE
Don’t be fooled by cheaper alternatives on the market. Yes, you can find an advertised “high-performance” intercooler for much cheaper, but what you end up buying may only be marginally better than the OEM unit you’re replacing. For the serious high-performance enthusiast, CSF offers the best value when deciding on a high-quality high-performance intercooler solution.
PERFORMANCE AND SIZE
Again, don’t be fooled by extremely large intercoolers. There are some options available that are 7inches or larger in core thickness. Bigger is not always better, especially when it comes to proper sizing and performance benefits of a high-performance intercooler. No one should consider hanging off the front of their “performance” car an intercooler that is more than ~30 pounds. When CSF decided on a proper sizing, the biggest intercooler possible was developed with a max weight of 30 pounds. Some larger options on the market are way over 40 pounds! Way too much to hang off the front of the car, the last place you want to add weight in a small performance sedan or coupe like the vehicles the N54 motor is found in. Also, intercoolers with thicker cores or options that say they have a “denser” core are not taking into account the negative effects on airflow into the rest of the cooling system. There is little to no true performance benefit if you have a cooling system with a massive intercooler resulting in very low IAT’s, but with very high water temperatures because of the lack of airflow, often resulting in the engine going into limp mode, especially when driving on the race track.
FITMENT
CSF’s new BMW N54/N55 intercooler is the only TRUE plug and play solution compared to the rest.
No cheaper silicon hose clamp system, only BMW style “Quick-Connect machined fittings.
OEM mounting locations w/ fitment kit and instructions included.
Clears OEM crash bar / no modification to install with no cutting or trimming required.
QUALITY
When purchasing a CSF intercooler, you’re purchasing from a cooling system manufacturer that is an ISO-certified Tier-1 OEM supplier that has designed, built, and tested the entire intercooler in-house. Competitors source their cores from overseas factories, and either weld the coolers themselves (not factory level production), or simply purchase an intercooler from a supplier source. Also, CSF intercoolers are meticulously hand welded by expert TIG welders and finished in a Semi-Gloss Black or Silver finish that is much more durable to damage than uncoated intercoolers. Finally, each intercooler is individually packaged with hardware kit, instructions, and CSF logo stencil.
Models
1 Series / E82 / E88 (2007-2013) / 1 Series M (1M)
