MACHT SCHNELL COMPETITION STUD CONVERSION KIT FOR BMW 75mm length M14x1.25mm

MACHT SCHNELL COMPETITION STUD CONVERSION KIT FOR BMW 75mm length M14x1.25mm

Regular price $349.00 AUD
Regular price Sale price $349.00 AUD
Sale Sold out
Tax included.
View full details

All Macht Schnell Competition fasteners are hardened and tempered to strength class 10.9 or 10 according to DIN/ISO standard 898. They meet the statutory requirements of all countries - including the USA.

All studs/nuts feature a black plating process for OEM appearance.

Final inspections are not restricted to random quality checks. Every single fastener is tested to ensure compliance with specifications. Studs/nuts are also offered individually and should be replaced after every race season.

PRODUCT INFORMATION

Thread Pitch M14x1.25mm
Nut Type 17mm Hex
Stud Type Hex Head
Length 75mm
Colour Black (Nut)
Grade 10.9
Quantity 20 Studs & 20 Nuts Per Kit

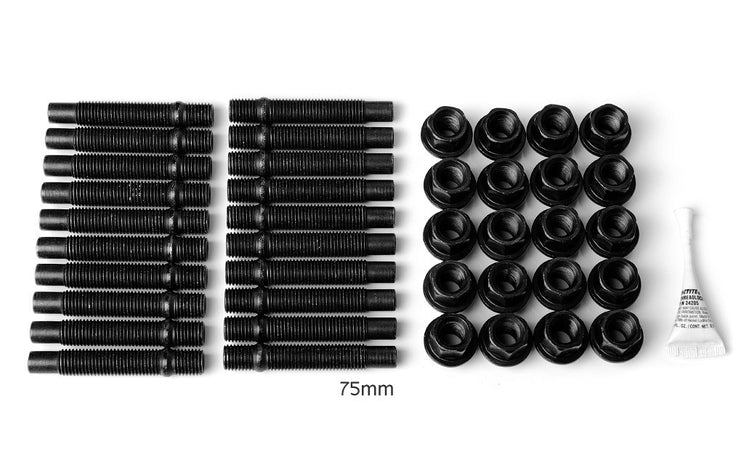

This kit includes 20 studs and 20 lug nuts.

APPLICATION LIST

Please use the list below to help determine which thread pitch your vehicle uses for wheel lugs.
If you have any questions or would like to confirm your selection prior to ordering, please feel free to contact us.

Benefits of a Wheel Stud Conversion Kit

Try and find a BMW race car that hasn't converted to wheel studs yet with a stud conversion kit. They're stronger, safer, and improve pit stop times significantly.

For non-race cars, stud conversions still make wheel installation and removal much easier as you no longer have to line up the holes in your wheels, spacers, and hubs beforehand threading a single lug bolt through. Simply slide the wheel onto the studs, and let go. With lugs, an unsupported wheel will slip off the hub lip and fall onto the ground. With studs, there is enough length to float the wheel in place and in proper alignment. Sitting on the ground with your feet under the car, and supporting the wheel with your feet while you try and line everything up is a thing of the past.

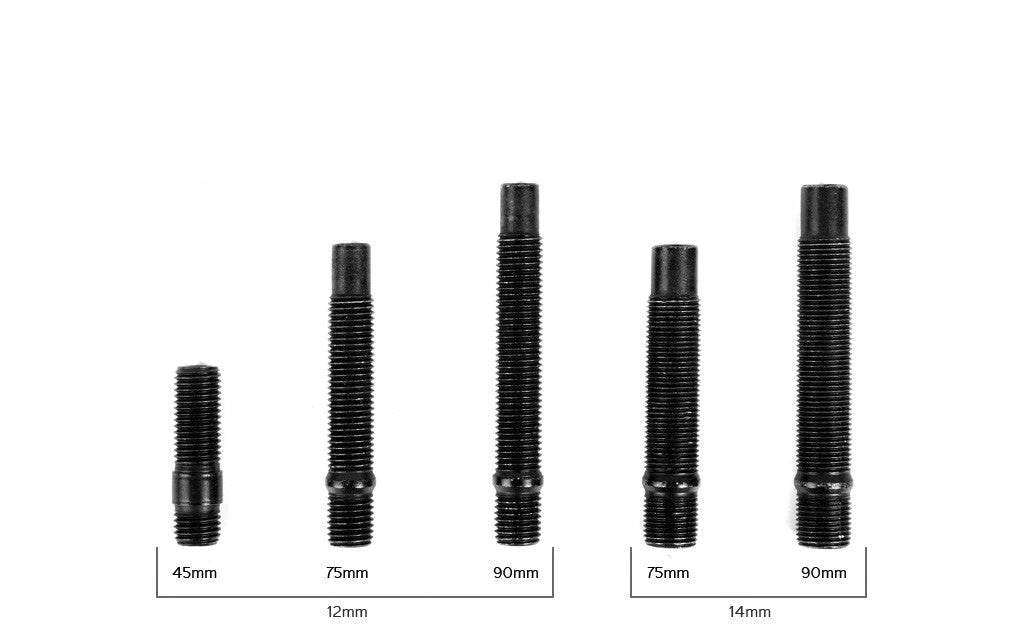

Extended length wheel studs like these allow for a range of spacers to be used without any additional modification. You can easily use 3mm, 5mm, 10, and 12mm spacers with the 75mm studs. For 15mm, 18mm, 20mm, and 25mm spacers, the 90mm studs are required to allow for enough thread engagement. Either length kit can be used without spacers just as easily. When using lug bolts with spacers you are forced to purchase a different length lug for each width spacer as any spacer even 3mm thick is dangerous to use with the short thread OEM BMW lug hardware. Why own a bucket full of lugs when a single set of studs can do it all?

By remaining installed, studs will put less wear on the threads of your hubs. They guarantee there is enough thread engagement, as you can see how many threads were engaged during install.

Wheel studs replace your OEM lug bolts by simply threading into your car's hub. Once installed they do not need to be removed when changing or removing wheels. Only the lug nuts are removed similar to many domestic and import vehicles.

Models Supported:

12mm Studs 14mm Studs
2008+ BMW E82/8 1-Series & 1M 2012+ BMW F30 3-Series
1992-2012 BMW E36, E46 & E9X 3-Series & M3 2011+ BMW F10 5-Series & M5
2004-2010 BMW E60/1 5-Series & M5 2012+ BMW F13 6-Series & M6
2005-2010 BMW E63 6-Series & M6 2009+ BMW F01 7-Series
2002-2008 BMW E65 7-Series
1996-2002 BMW E36 Z3 & Z3M
2003+ BMW E85 & E89 Z4 & Z4M
