The Racing & High Performance Division of CSF Inc. strives to build and engineer the most advanced, efficient, and reliable cooling systems in the world. CSF manufacturers a wide variety of sophisticated cooling systems with more than 250 different applications, ranging from high performance all-aluminum direct-fit radiators, intercoolers, and oil coolers, to complete custom manufacturing for racecars, power sports, off-road, marine, and industrial use. All CSF cooling systems are designed and engineered to maintain optimal engine temperatures, even under the most extreme driving conditions.
With over 50 years of experience and over 40 million cooling systems sold globally, CSF has earned the industry reputation of being “THE COOLING EXPERTS”.
- Over 50 Years in Business
- ISO 9001 Certified – True Manufacturer
- Over 150,000 Radiators and Condensers in Stock over North America
- Over 650,000 Units Sold Annually, with Manufacturing and Warehousing Capacity for 1 Million Units
CSF prides itself on using the most advanced technologies, machines, and experienced personnel to design, develop, and manufacture the world’s best cooling systems. With three privately owned manufacturing facilities, and a global cooling network formed over the past 75 years, CSF houses the industry’s best machines and brightest minds. Our engineering staff designs many of the machines in-house, giving CSF the innovative edge when introducing new technologies to the industry.
PRODUCT INFORMATION
THE ULTIMATE COOLING SOLUTION FOR BMW F8X M3, M4, & M2 COMPETITION
The BMW F80 M3, F82/F83 M4 & F87 M2 Competiton are still regarded as some of the best performance platforms available. BMW’s S55 Motor has amazing potential for power and there are countless performance parts available for it. However, like most production engines, the S55 doesn’t come equipped from the factory with sufficient cooling capabilities to cope with added power or even prolonged performance driving. CSF have designed a full line of S55 cooling options to help you get the most out of your BMW F8X. The CSF Charge-Air-Cooler, Heat Exchanger, and Transmission Cooler will keep you ahead of the competition.

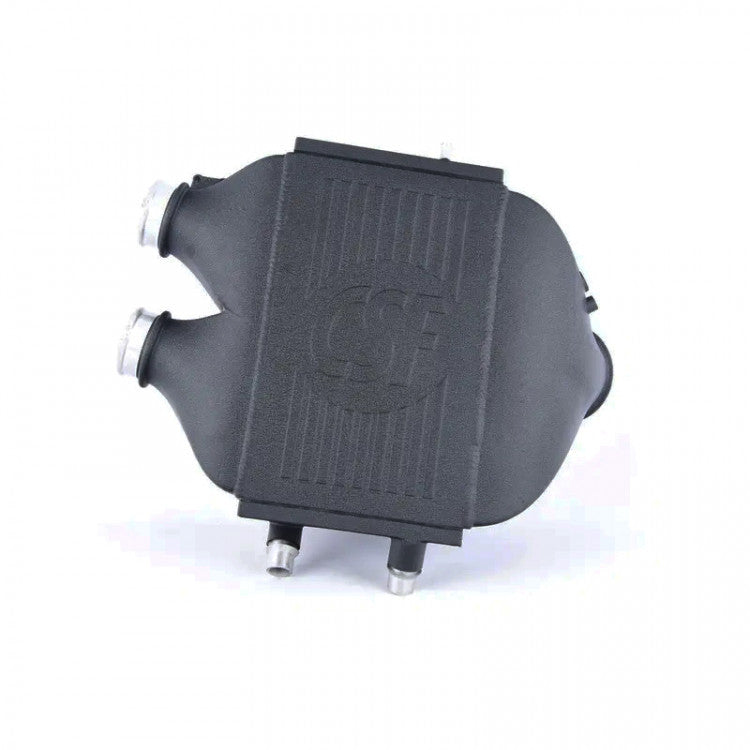

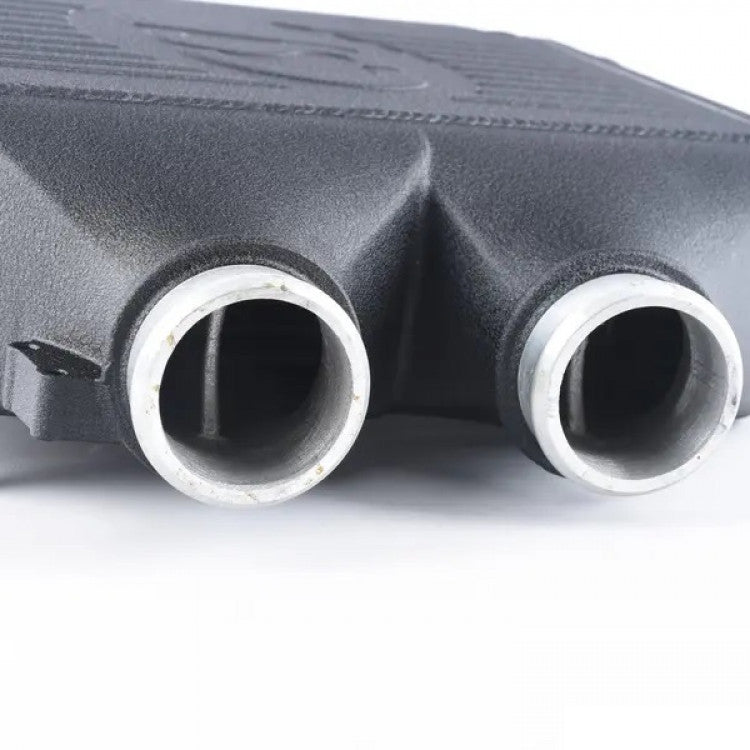

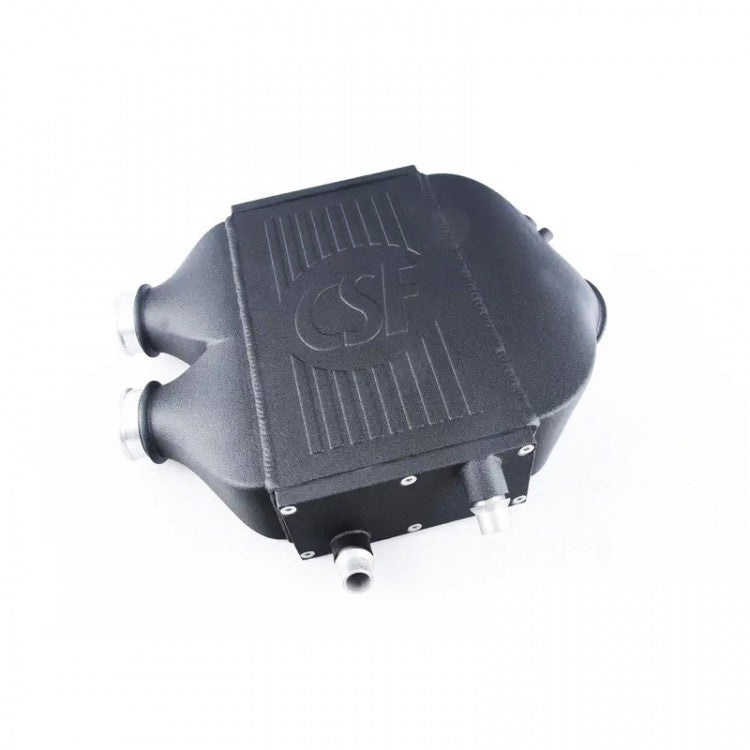

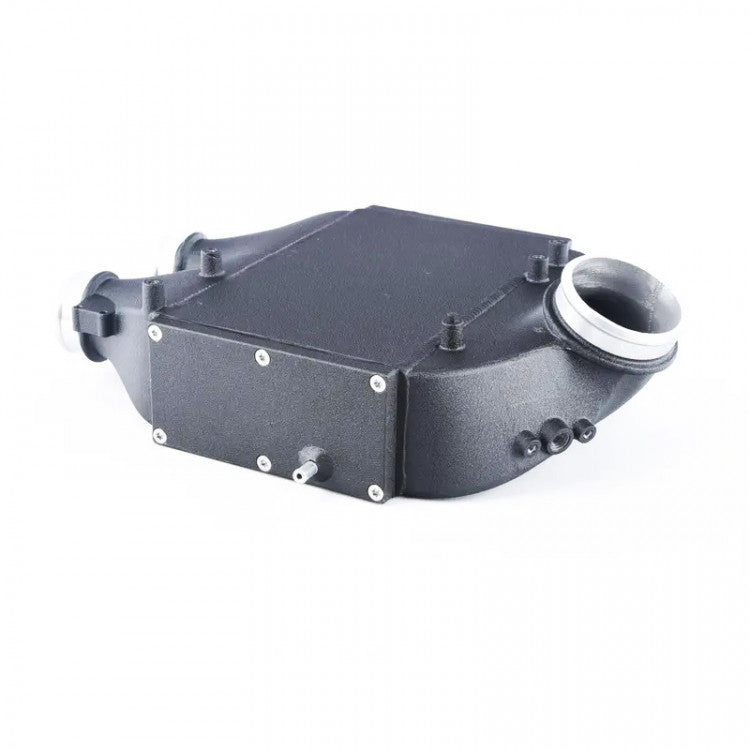

BMW F8X TOP MOUNT DUAL-PASS CHARGE-AIR-COOLER
The S55 suffers heavily from heat soak. Many tuners witnessed this early on after doing multiple dyno pulls and seeing significant drops in power after each consecutive pass. Many F8X owners experienced the same loss of power on the track as the engine just could not cool off during laps. The solution is two fold: The Charge-Air-Cooler & Front Mount Heat Exchanger work together to keep the intake temps down and power up. The factory units simply cannot dissipate enough heat to keep up with prolonged performance driving. Our Charge-Air-Cooler boasts a core size that is 60% larger, greatly increasing the capacity for heat transfer from the hot charge air coming from the turbos. Paired with the Front Mount Heat Exchanger the system is able to maintain lower intake temps and keep your BMW F8X’s power up.
The CSF Dual-Pass Top Mount Charge Air Cooler is a direct replacement for BMW part number 17517846235.
FEATURES
- World’s 1st cast end tank designed top mount charge-air-cooler for the BMW S55 engine.
- Multiple air dividers cast into both the hot/cold side end tanks for optimized air flow through the custom designed CSF liquid-to-air intercooler core (CFD analysis and testing completed to ensure optimal performance).
- 60% increase in core size compared to the OEM cooler.
- Left/right, cross-flow, dual-pass core configuration with 2-stage water cooling for maximum efficiency and intake temperature reduction (vs. OEM single-pass vertical-flow design).
- Designed with 3D scanning / rapid prototype technology to ensure precise fitment and maximum surface area utilization.

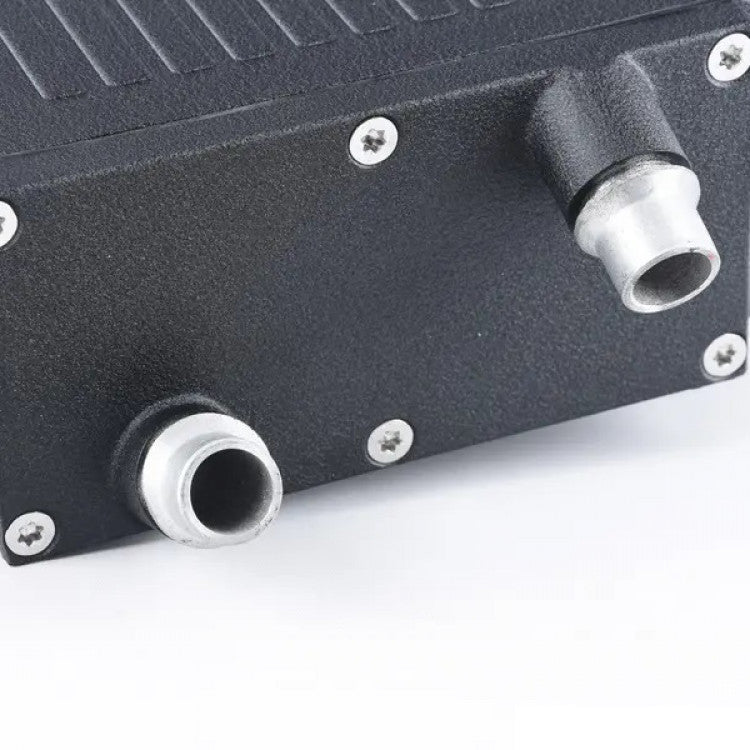

- “Drop-in fit” design for an easy & quick plug-and-play installation, complete with OEM style “Quick-Connect” water connections and sensor ports.
- Finished with a Raw Aluminium finish (CSF8082R) or a professional "Crinkle Black" powder coat finish (CSF8082). Optional finishes also available for an additional cost.
- 2 Series / F87 M2 (2016-2021) / M2 Competition
- 2 Series / F87 M2 (2016-2021) / M2 CS
- 3 Series / F80 M3 (2014-2019) / M3
- 3 Series / F80 M3 (2014-2019) / M3 Competition
- 3 Series / F80 M3 (2014-2019) / M3 CS
- 4 Series / F82 / F83 (2014-2019) / M4
- 4 Series / F82 / F83 (2014-2019) / M4 Competition
- 4 Series / F82 / F83 (2014-2019) / M4 CS
- 4 Series / F82 / F83 (2014-2019) / M4 GTS
