SCC is Germany's largest manufacturer of wheel spacer and adaptor systems. With the SCC wheel spacers installed, your car will both look and perform better than it ever has before.
PRODUCT INFORMATION

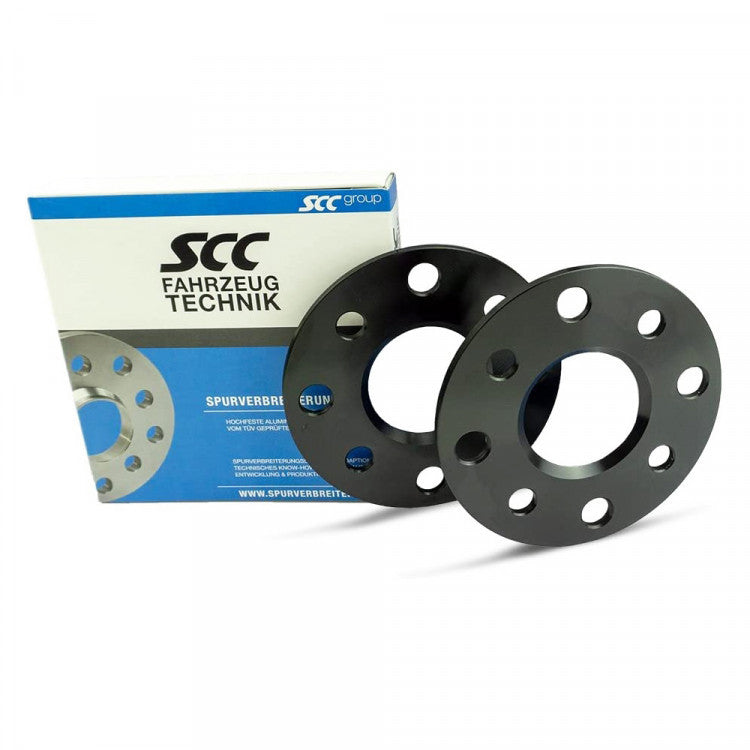

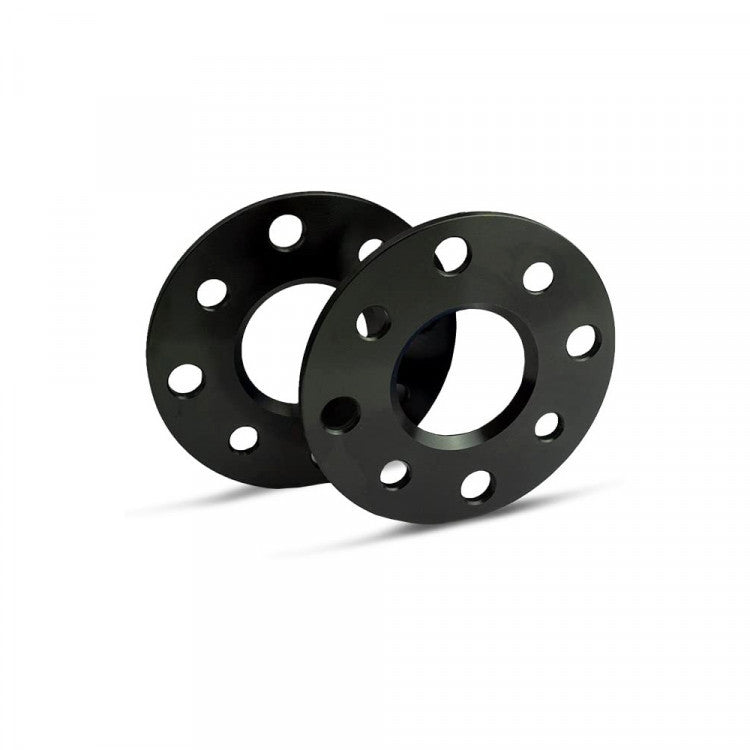

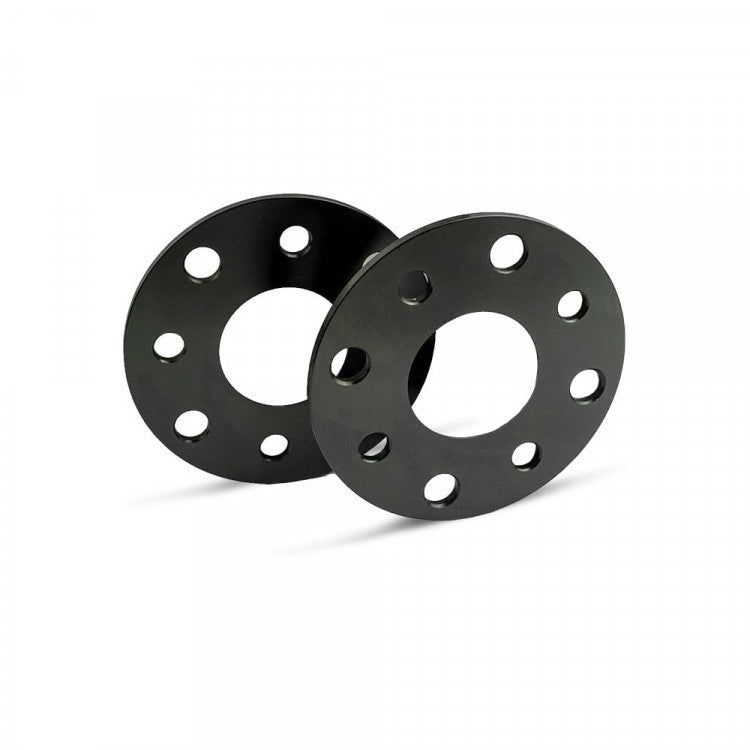

SCC WHEEL SPACERS | SYSTEM 5
The SCC System 5 non-hub centric wheel spacers are designed for optimum driving behaviour and safety. The rim is centered using the vehicle hub, which is typically long enough for anything less than a 10mm spacer. Extended wheel bolts are additionally required.
Spacer Size 10mm (20mm Per Axle)
Bolt Pattern 5 x 112mm
Centre Bore 66.6mm
Colour Black Anodized
Contents 2 Spacers (1 Axle) Per Kit
Spacer Size 10mm (20mm Per Axle)
Bolt Pattern 5 x 112mm
Centre Bore 66.6mm
Colour Black Anodized
Contents 2 Spacers (1 Axle) Per Kit
Features
- High strength, light weight aluminum/ magnesium alloy.
- Precision CNC machined.
- Includes detailed mounting instructions for quick and easy installation.
- Delivered with TUV or ABE approval.
- Engineered, manufactured and tested in Germany.
-
WHEEL MOUNTING INFORMATION
This spacer set is suitable for use on the following vehicles in combination with the applicable size wheel bolts.Wheel Bolt M14x1.25mm
Suitable for most BMW models (F-Series and G-Series) built after 2012.
Length 30mm
Head Size 17mm
Head Shape Cone 60°
Colour Black
Set Quantity 10 Wheel BoltsSuitable Models
- F40 1 Series
- F44 2 Series Gran Coupe
- F45 2 Series Active Tourer
- G42 2 Series
- G87 M2 Coupe
- G20 & G21 3 Series
- G22, G23 & G26 4 Series
- G80 M3 Sedan
- G81 M3 Touring
- G82 M4 Coupe
- G83 M4 Convertible
- G30 & G31 5 Series
- F90 M5 Sedan
- G32 6 Series GT
- G11 & G12 7 Series Sedan
- G14, G15 & G16 8 Series
- F91 M8 Convertible
- F92 M8 Coupe
- F93 M8 Gran Coupe
- I01 i3
- I12 & I15 i8
- F48 X1
- F39 X2
- G01 X3
- F97 X3M
- G02 X4
- F98 X4M
- G05 X5
- G06 X6
- F95 X5M
- F96 X6M
- G07 X7
- G29 Z4
- G08 iX3
- Mini F54 Clubman
- Mini F55 4-Door Hatch
- Mini F56 2-Door Hatch
- Mini F57 Cabrio
- Mini F60 Countryman
Note: Fitment may not be possible on certain rim or hub types due to the low wheel spacer thickness. Modifications or larger spacers may be required. Please contact us if you have any questions.
Models
- 1 Series / F40 (2019+) / M135i / M135i xDrive
- 1 Series / F40 (2019+) / 128ti
- 1 Series / F40 (2019+) / 118i
- 1 Series / F40 (2019+) / 118d
- 2 Series / F45 Active Tourer (2014-2021) / 225i
- 2 Series / F45 Active Tourer (2014-2021) / 220i
- 2 Series / F45 Active Tourer (2014-2021) / 218i
- 2 Series / F45 Active Tourer (2014-2021) / 218d
- 2 Series / F44 (2019+) / M235i
- 2 Series / F44 (2019+) / 218i
- 2 Series / F44 (2019+) / 220i
- 2 Series / F44 (2019+) / 220d
- 2 Series / G42 (2021+) / M240i / M240i xDrive
- 2 Series / G42 (2021+) / 230i
- 2 Series / G42 (2021+) / 220i
- 2 Series / G87 M2 (2022+) / M2
- 3 Series / G20 / G21 (2019+) / M340i / M340i xDrive
- 3 Series / G20 / G21 (2019+) / 330i
- 3 Series / G20 / G21 (2019+) / 330e
- 3 Series / G20 / G21 (2019+) / 320i
- 3 Series / G20 / G21 (2019+) / 320d
- 3 Series / G80 / G81 M3 (2021+) / M3
- 3 Series / G80 / G81 M3 (2021+) / M3 Competition
- 4 Series / G22 / G23 / G26 (2020+) / 420i
- 4 Series / G22 / G23 / G26 (2020+) / 430i
- 4 Series / G22 / G23 / G26 (2020+) / M440i / M440i xDrive
- 4 Series / G82 / G83 M4 (2021+) / M4
- 4 Series / G82 / G83 M4 (2021+) / M4 Competition
- 4 Series / G82 / G83 M4 (2021+) / M4 CSL
- 4 Series / G26 i4 (2022+) / i4 M50
- 4 Series / G26 i4 (2022+) / i4 eDrive35
- 4 Series / G26 i4 (2022+) / i4 eDrive40
- 5 Series / G30 / G31 (2017+) / M550i xDrive
- 5 Series / G30 / G31 (2017+) / 540i
- 5 Series / G30 / G31 (2017+) / 530e
- 5 Series / G30 / G31 (2017+) / 530i
- 5 Series / G30 / G31 (2017+) / 520i
- 5 Series / G30 / G31 (2017+) / 530d
- 5 Series / G30 / G31 (2017+) / 520d
- 5 Series / F90 M5 (2018+) / M5
- 5 Series / F90 M5 (2018+) / M5 Competition
- 5 Series / F90 M5 (2018+) / M5 CS
- 6 Series / G32 (2017+) / 640i
- 6 Series / G32 (2017+) / 630i
- 6 Series / G32 (2017+) / 620d
- 7 Series / G11 / G12 (2016+) / M760Li
- 7 Series / G11 / G12 (2016+) / 750i / 750Li
- 7 Series / G11 / G12 (2016+) / 745e
- 7 Series / G11 / G12 (2016+) / 740e
- 7 Series / G11 / G12 (2016+) / 740i / 740Li
- 7 Series / G11 / G12 (2016+) / 730d
- 8 Series / G14 / G15 / G16 (2018+) / M850i
- 8 Series / G14 / G15 / G16 (2018+) / 840i
- 8 Series / F91 / F92 / F93 M8 (2019+) / M8
- 8 Series / F91 / F92 / F93 M8 (2019+) / M8 Competition
- i Series / I01 i3 (2014-2022) / i3
- i Series / I12 / I15 i8 (2015-2020) / i8 Coupe
- i Series / I12 / I15 i8 (2015-2020) / i8 Roadster
- i Series / I20 (2022+) / iX M60
- i Series / I20 (2022+) / iX xDrive40
- i Series / I20 (2022+) / iX xDrive50
- X1 Series / F48 (2016+) / X1 25i
- X1 Series / F48 (2016+) / X1 20i
- X1 Series / F48 (2016+) / X1 18i
- X1 Series / F48 (2016+) / X1 20d
- X1 Series / F48 (2016+) / X1 18d
- X2 Series / F39 (2018+) / X2 M35i
- X2 Series / F39 (2018+) / X2 20i
- X2 Series / F39 (2018+) / X2 18i
- X2 Series / F39 (2018+) / X2 20d
- X3 Series / G01 (2018+) / X3 M40i
- X3 Series / G01 (2018+) / X3 30i
- X3 Series / G01 (2018+) / X3 20i
- X3 Series / G01 (2018+) / X3 30d
- X3 Series / G01 (2018+) / X3 20d
- X3 Series / F97 X3M (2019+) / X3M
- X3 Series / F97 X3M (2019+) / X3M Competition
- X4 Series / G02 (2018+) / X4 M40i
- X4 Series / G02 (2018+) / X4 30i
- X4 Series / G02 (2018+) / X4 20i
- X4 Series / G02 (2018+) / X4 20d
- X4 Series / F98 X4M (2019+) / X4M
- X4 Series / F98 X4M (2019+) / X4M Competition
- X5 Series / G05 (2019+) / X5 M50d
- X5 Series / G05 (2019+) / X5 30d
- X5 Series / G05 (2019+) / X5 25d
- X5 Series / G05 (2019+) / X5 40i
- X5 Series / G05 (2019+) / X5 45e
- X5 Series / G05 (2019+) / X5 M50i
- X5 Series / F95 X5M (2020+) / X5M
- X5 Series / F95 X5M (2020+) / X5M Competition
- X6 Series / G06 (2019+) / X6 40i
- X6 Series / G06 (2019+) / X6 M50d
- X6 Series / G06 (2019+) / X6 30d
- X6 Series / G06 (2019+) / X6 M50i
- X6 Series / F96 X6M (2020+) / X6M
- X6 Series / F96 X6M (2020+) / X6M Competition
- X7 Series / G07 (2019+) / X7 M50i
- X7 Series / G07 (2019+) / X7 40i
- X7 Series / G07 (2019+) / X7 M50d
- X7 Series / G07 (2019+) / X7 30d
- Z Series / G29 Z4 (2018+) / Z4 M40i
- Z Series / G29 Z4 (2018+) / Z4 30i
- Z Series / G29 Z4 (2018+) / Z4 20i
- MINI / F55 / F56 Hatch (2014+) / Cooper D
- MINI / F55 / F56 Hatch (2014+) / Ray (One)
- MINI / F55 / F56 Hatch (2014+) / Cooper
- MINI / F55 / F56 Hatch (2014+) / Cooper S
- MINI / F55 / F56 Hatch (2014+) / JCW
- MINI / F55 / F56 Hatch (2014+) / JCW GP
- MINI / F54 Clubman (2015+) / Cooper
- MINI / F54 Clubman (2015+) / Cooper S
- MINI / F54 Clubman (2015+) / JCW
- MINI / F60 Countryman (2017+) / Cooper D
- MINI / F60 Countryman (2017+) / Cooper SD
- MINI / F60 Countryman (2017+) / Cooper
- MINI / F60 Countryman (2017+) / Cooper S
- MINI / F60 Countryman (2017+) / JCW
