For many vehicles, such as the E82 1 Series M (1M) and E9x M3, brake cooling is recommended even under medium-heavy loads, even off the race track. This not only improves braking performance, but also drastically reduces wear on the brake pads and discs.

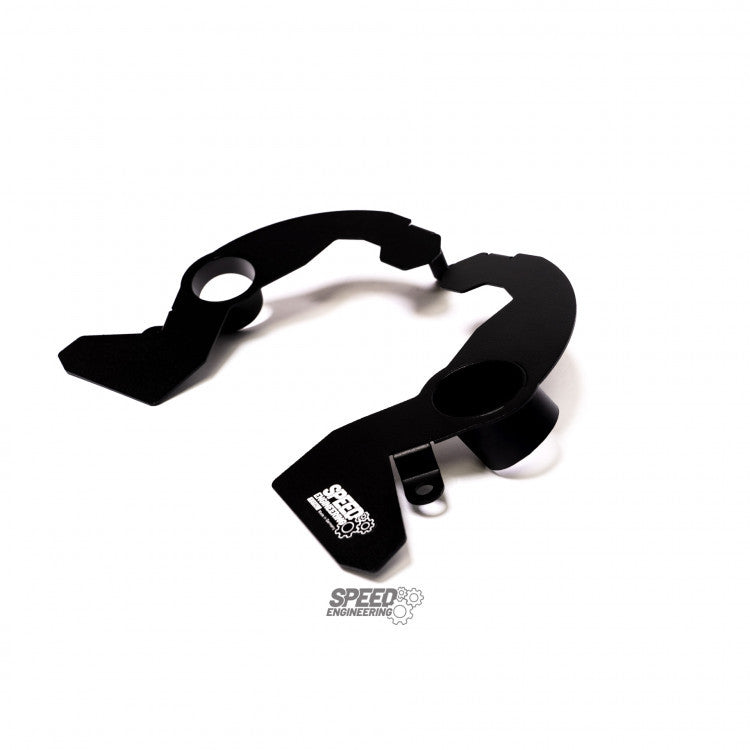

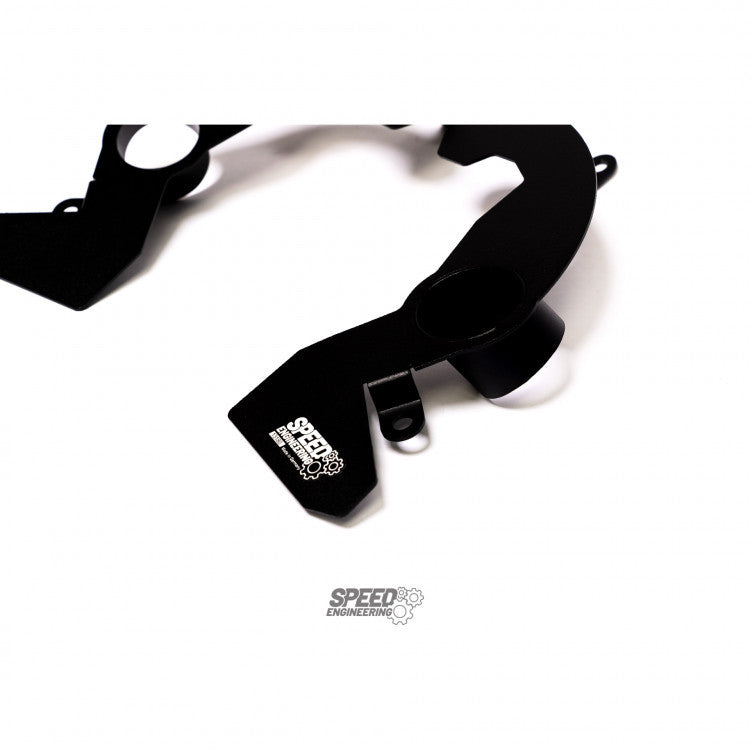

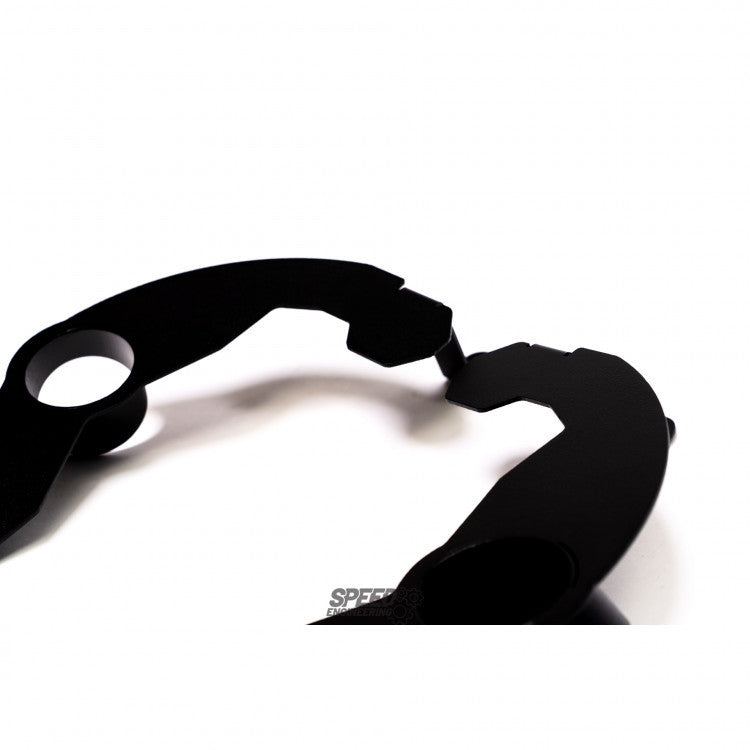

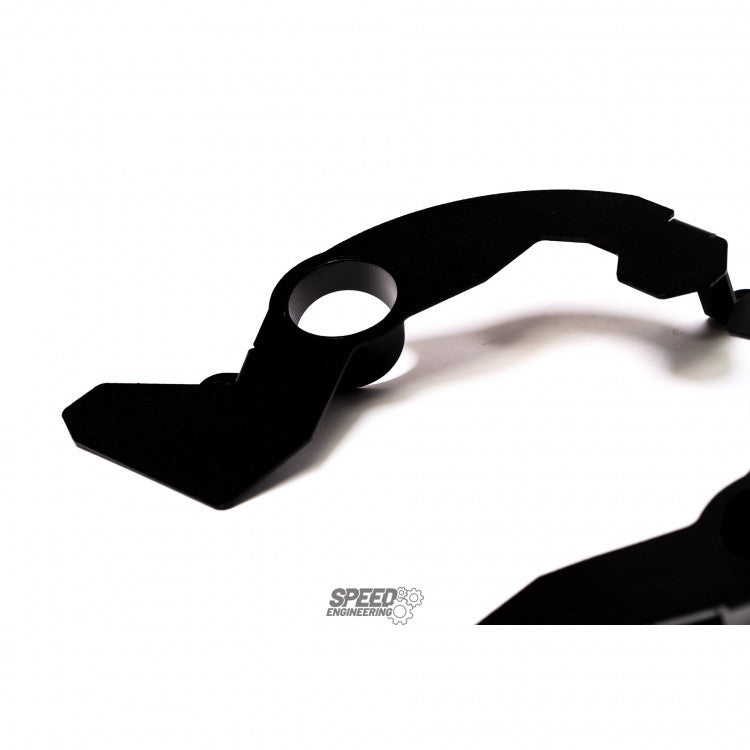

The Speed Engineering anchor plate uses the channelling of airflow to the centre of the brake disc to use the turbine effect to cool the disc from the inside. In doing so, the disc is targeted at a defined angle so as not to suffer any wastage and to use the available air volume as efficiently as possible. Due to the light construction in combination with powdered aluminium, the anchor plate is sufficiently strong and at the same time light and insensitive. In addition, the bearings closest to the brake disc are shielded from the heat to increase their service life.

The required brake hose diameter is 51mm (not included). The matching hose and hose clamps are optionally available to order.

The anchor plate fits plug & play and no additional fastening material is required. The original attachment points and screws can be reused.

Suitable for E82 1 Series M (1M) Coupe, E90 M3 Sedan, E92 M3 Coupe and E93 M3 Convertible models.

Scope of delivery

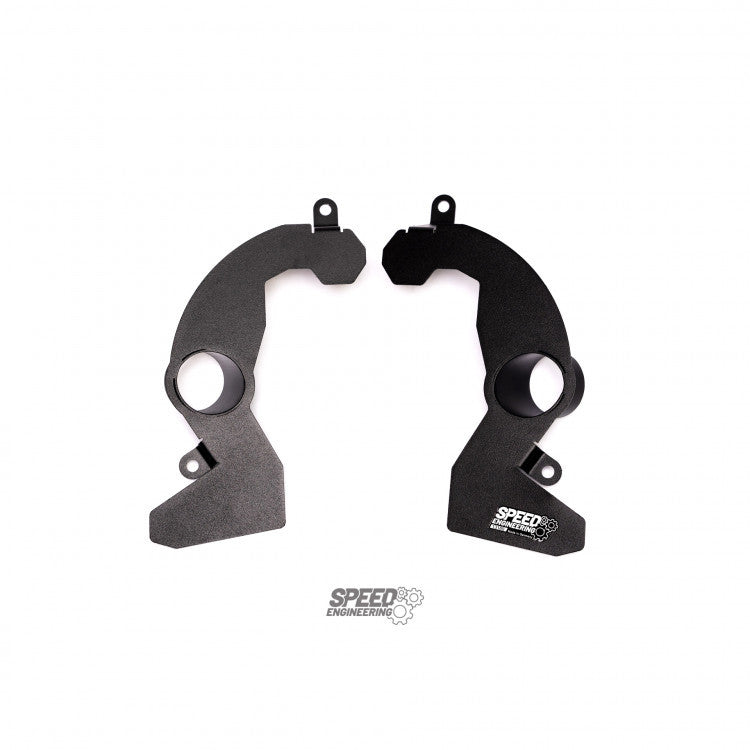

• 1x Anchor Plate, Front Axle, Left
• 1x Anchor Plate, Front Axle, Right
