ST XA Coilovers Galvanized Steel (Damping Adjustment) - F20, F22, F30, F32

ST XA Coilovers Galvanized Steel (Damping Adjustment) - F20, F22, F30, F32

Regular price $2,349.00 AUD
Regular price Sale price $2,349.00 AUD
Sale Sold out
Tax included.
View full details

ST SUSPENSIONS

Choose the right components for your vehicle from one of the largest delivery programs for high-quality suspension products. At ST suspensions, you will get the matching springs, the perfect wheel spacers, level adjusting lift kits, sport suspensions, tailor-made anti-sway bars or coilover kits at an attractive price. The best part: all ST suspension products are manufactured in the well-known high KW-quality.

PRODUCT INFORMATION

Adjustable front lowering 25-50 mm
Adjustable rear lowering 30-55 mm
Axle load front -920kg
Axle load rear -1,230kg
Damping adjustment Rebound adjustment

Suitable for F20 116i, 118i, 118d, 120i & 125i Hatch, F22 220i, 220d, 228i & 230i Coupe, F30 316i, 318i, 318d, 320i, 320d, 328, & 330i Sedan, F32 420i, 420d, 428i & 430i Coupe models with or without Electronic Damper Control (EDC) suspension. The KW Cancellation kit for electronic damping is also required for cars fitted with factory EDC. Not for F23 2 Series Convertible, F31 3 Series Touring, F34 3 Series GT, F33 4 Series Convertible or F36 4 Series Gran Coupe.

Please contact us before ordering if you are unsure if this kit is suitable for your vehicle.


About ST XA Coilovers Galvanized Steel (Damping Adjustment)

For drivers wanting more than just ride height adjustment comes the ST XA coilover. Developed alongside KW Automotive the ST XA allows individual adjustment of the damping to suit just about all your driving needs!

Perfect for sporty driving

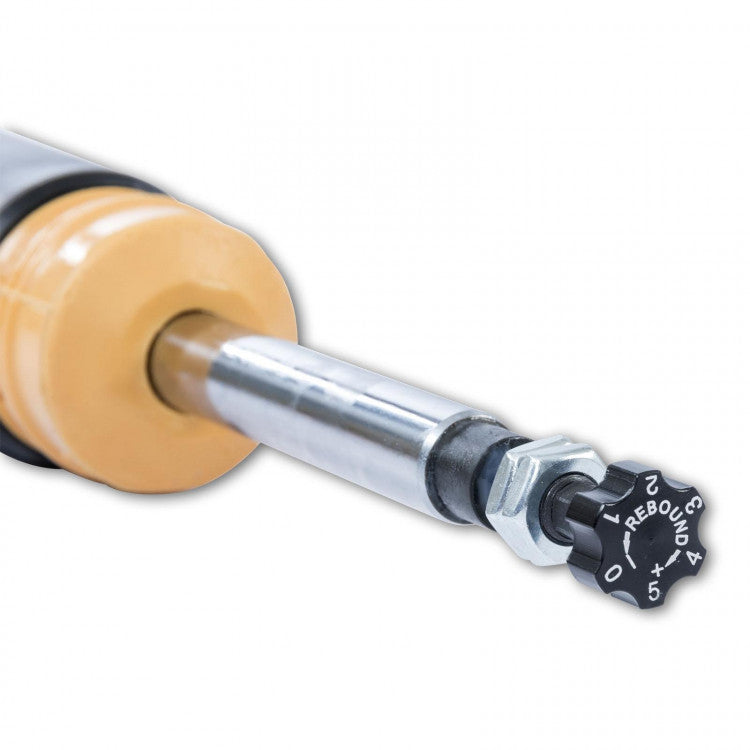

ST XA coilovers feature KW damping technology which allows the suspension to be made either stiffer or softer depending on the driving conditions. This damping adjustment is made on the upper end of the chromed piston rod allowing the setup to be changed almost instantly. If the rebound force is increased, the car will drive with even more track stability and further reduced bodyroll. If the rebound force is decreased, the car will feel more comfortable when on the move. Any vehicle fitted with ST XA coilovers will act much more agile and sporty compared to standard.

Easy lowering adjustment

Like all ST coilovers the lowering adjustment is made via a continuous thread on the galvanized strut. This even allows the lowering to be made even when the kit is installed by turning the spring plate higher or lower! NOTE: The lowering of each vehicle differs greatly with ST XA coilovers due to the type of construction. For example, older vehicles such as the Honda Civic (EJ9) can be lowered between 40-75mm with ST XA coilovers, while newer models such as the Audi S3 (8P) can be lowered between 10-40mm due to being much lower from the factory.

KW Engineering: Exclusive for ST suspension

The high-quality ST XA coilover is based on the twin-tube damping principle of low friction combined with pressure-resistant damper housings. Manufactured directly at KW, a mono block guide and seal package reduces the friction of the damper as well as protecting it against corrosion and dirt. Each galvanized strut is sealed multiple times to ensure maximum longevity in ALL weather conditions.

  • External damper adjustment.
  • Latest damping technology for maximum longevity.
  • Reduced system friction for effective damping adjustment.
  • Individual lowering within the TÜV-tested adjustment range.
  • Front and rear axle (when possible) with thread adjustment.
  • Galvanized coilover struts with additional coating for an optimized corrosion protection.

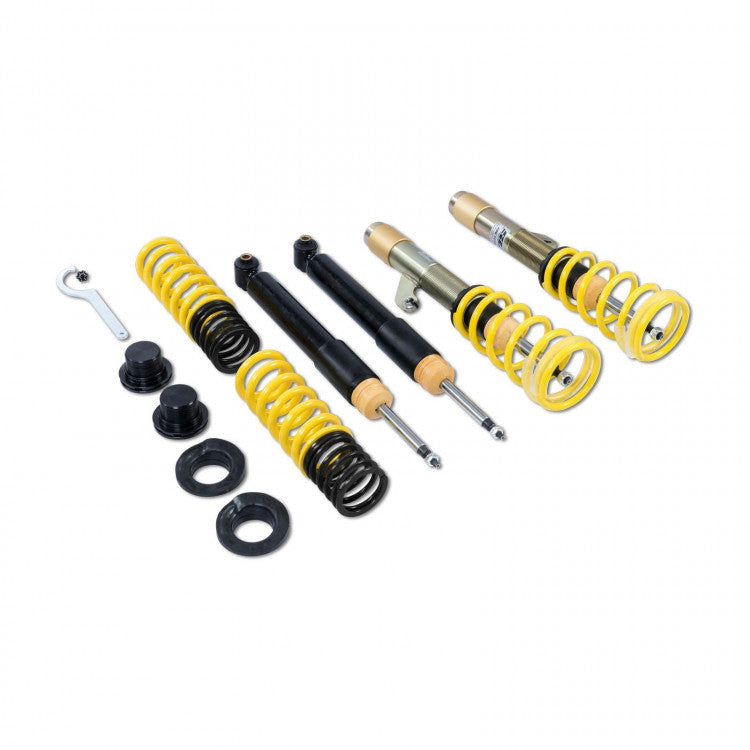

  • Complete solution with adjustable spring plate, race spring system and bumpers with dust protection.
Models
  • 1 Series / F20 (2012-2019) / 125i
  • 1 Series / F20 (2012-2019) / 120i
  • 1 Series / F20 (2012-2019) / 118i
  • 1 Series / F20 (2012-2019) / 116i
  • 1 Series / F20 (2012-2019) / 118d
  • 2 Series / F22 / F23 (2014-2021) / 230i
  • 2 Series / F22 / F23 (2014-2021) / 228i
  • 2 Series / F22 / F23 (2014-2021) / 220i
  • 2 Series / F22 / F23 (2014-2021) / 220d
  • 3 Series / F30 / F31 / F34 (2012-2018) / 330i
  • 3 Series / F30 / F31 / F34 (2012-2018) / 328i
  • 3 Series / F30 / F31 / F34 (2012-2018) / 320i
  • 3 Series / F30 / F31 / F34 (2012-2018) / 318i
  • 3 Series / F30 / F31 / F34 (2012-2018) / 316i
  • 3 Series / F30 / F31 / F34 (2012-2018) / 318d
  • 3 Series / F30 / F31 / F34 (2012-2018) / 320d
  • 4 Series / F32 / F33 / F36 (2014-2020) / 430i
  • 4 Series / F32 / F33 / F36 (2014-2020) / 428i
  • 4 Series / F32 / F33 / F36 (2014-2020) / 420i
  • 4 Series / F32 / F33 / F36 (2014-2020) / 420d
