Team Plus PRO CANGate Bundle PRO Tyre Temp Sensors and External Track Grade TPMS Pressure sensors Kit

Team Plus PRO CANGate Bundle PRO Tyre Temp Sensors and External Track Grade TPMS Pressure sensors Kit

Regular price $1,799.00 AUD
Regular price Sale price $1,799.00 AUD
Sale Sold out
Tax included.
View full details



Team Plus Pty Ltd (Team Plus) is an Australian small business engaged in the production, sale and support of Automotive Telemetry focused Race and Track Products.

The Team Plus Telemetry solutions business grew from the support provided to motorsports teams across Australia, and offer products (applications and hardware) that help support motorsport and vehicle enthusiasts get access to information and technology only available to high end motorsport teams in the past at a price that is affordable.

Team Plus is a small family business located in Australia manufacturing and selling exclusive Australian Designed and built products and utilising customised software.

The Team Plus PRO CANGate Bundle includes the products you need to get you started with your Team Plus Wheel Turtles PRO Tyre Temp Sensors plus Track Grade External TPMS Pressure Sensors and connection to your CAN system using the Team Plus CANGate including a CANHUB 4 PORT.

Wheel Turtle PRO CANGate Bundle includes:

  • Set of 4 Wheel Turtle PRO Tyre Temp Sensors
  • Wiring Kit with USB cables and 12v-USB adapters
  • Set of 4 External Track Grade TPMS Pressure sensors
  • CANGate
  • CANHub 4 Port

Details of the included parts in the kit are below:

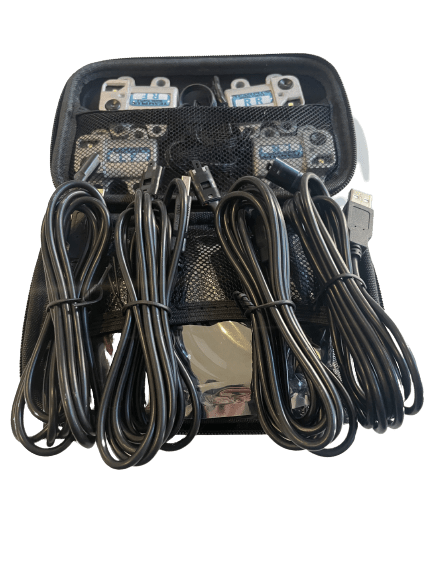

PRO tyre temperature system

The Team Plus™ WHEEL TURTLE™ PRO tyre temperature system is a set of 4 innovative sensor modules designed to mount in a wheel arch.  Each WHEEL TURTLE™ collects data on 8 Temperature points across the face of each tyre, plus distance to wheel for suspension movement and tyre colour RGB values. These values are sent via Bluetooth and can be
    • Viewed live on Team Plus™ TELDASH™ phone app
    • Logged and/or remote viewed using TELEDASH phone app or  Team Plus™ TELELOGGER™
    • Integrated to your CANbus Dash or Logger using the Cangate
The WT1 model features:
    • Temps per tire / tyre: 8 + Distance and  RGB Colour
    • Update Rate: 15Hz
    • Case: Alloy
    • Power Source: Hard Wired 12V
    • Sensor Head: Fixed
    • Dimensions: mm 47(L) x 50(W) x 13(H)

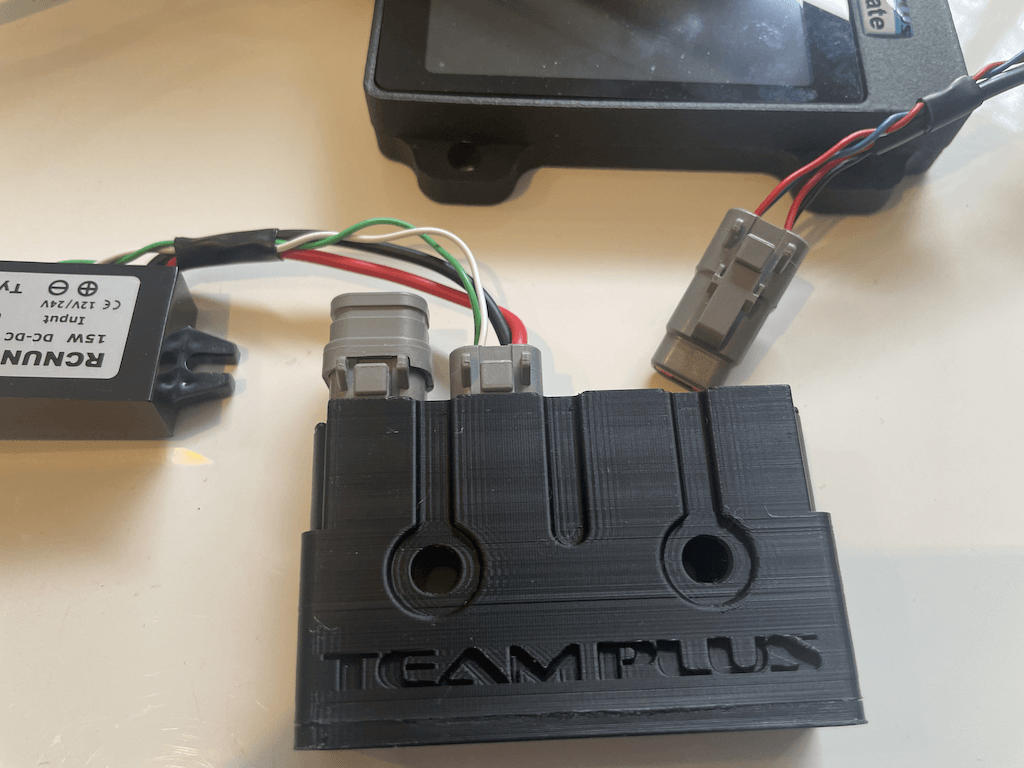

CanGate

Connect your Team Plus Wheel Turtles and/or Team Plus Tyre Pressure (TPMS) to your existing CANbus setup via the Team Plus CANGate. CANGate connects to the Wheel Turtles and our TPMS over Bluetooth and then passes data onto your CANbus, so it is available to any CAN based dash or logger or ECU. The CANGate set up is ideal for cars with existing or planned CANbus based race dash or loggers, so all the data is integrated together and analysis is fine in your existing tools.

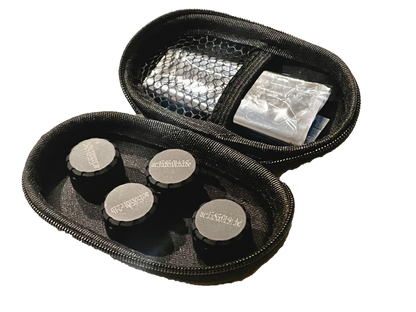

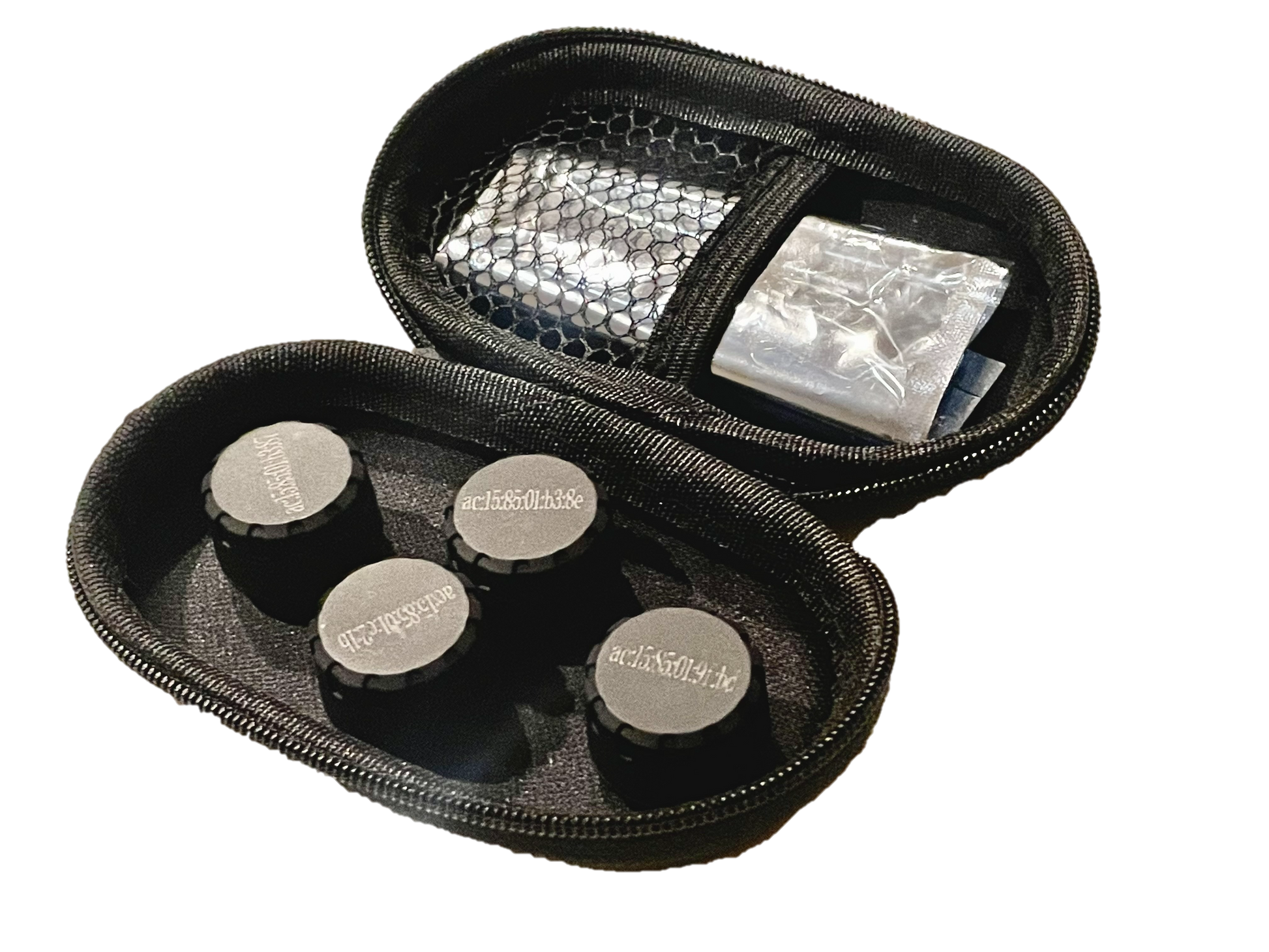

External Track grade TPMS monitors

The Team Plus™ Track Day Grade TPMS is a purpose built for racing set of 4 tyre pressure modules to mount on each tyre valve measuring:
  • Tyre Pressure
  • Valve Temperature
The data collected by The Team Plus™ WHEEL TURTLES™ can be supplemented by the TPMS data, giving an even more complete picture of the tyre condition. Team Plus TPMS is available in 2 grades:
  • Street Grade - Similar to existing bluetooth TPMS models available, with updates in pressure limited to every 2-3 seconds and pressure accuracy within 1psi, but with very long battery life.   Suitable for general tyre information and loss of pressure information supplementing the Wheel Turtle Tyre Temperatures.

  • Track Day Grade  - A model exclusive to Team Plus and built to our specifications, these external TPMS sensors are built to have a significantly higher pressure update rate of around 10Hz (10 times each second) as well as better accuracy of pressure measurement (around 0.1psi).  This will provide fast and accurate real time data on pressure to go with the Wheel Turtle Temperatures.  These are ideal for the track day and test day scenario adding value to the can bus data.

4 Port CAN bus hub – Universal fitment, suits all ECUs and CAN bus devices (wiring permitting)

Supplied in two different mounting options:

  • Horizontal – lay your CAN hub down on the mounting surface to keep cables flat against the panel for neater cable management.
  • Vertical – stand your CAN hub up perpendicular with the mounting surface for easier connecting and disconnecting of devices.
  • Connect up to 4 CAN devices onto the one network, supplying Power, Ground and CAN comms to all devices.
  • Daisy Chain additional CAN Hubs to extend your CAN network even further.
  • Convenient way to supply Power and Ground to devices that don’t need CAN Comms also.
  • Proudly designed and manufactured in Australia

    Please have a look at the video links below, great way to understand the tool in action including understanding your suspension setup and movement to improve your track times.
